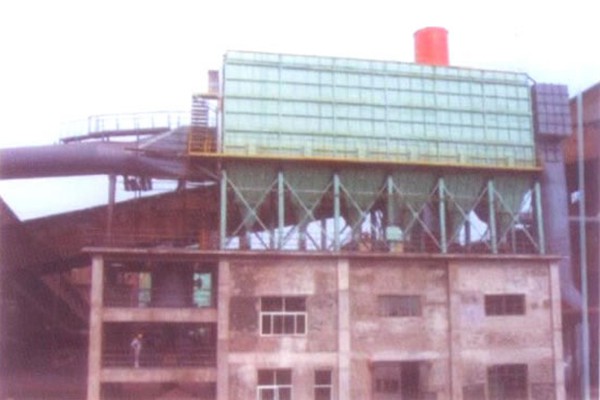

Pulse Bag Dust Collector

Pulse Bag Dust Collector

Characteristics of LY-Ⅱtype Pulse Bag Dust Collector
1. Pulse bag dust collector is a kind of cement equipment widely used for material recovery or smoke management in metallurgy, nonferrous smelting field, construction industry, nonmetal mining industry or other industries that produce massive dust or smoke.
2. Dusty gas enters the dust collection system through dust hopper inlet. Under the action of air deflector, large dust is separated out and fall into dust hopper directly. The fine dust goes into filter bag for filtering, and then the dust is retained on the surface of filter bag and the purified air is exhausted from outlet through upper box body.
3. When there is a certain quantity of dust on the surface of filter bag, the automatic control system will instruct ash removal mechanism to remove the dust. This ensures the normal operation of pulse bag dust collector.
4. Our bag filter dust collector has the features of compact structure, high efficiency, low energy consumption, high cleaning effect, reliable operation, easy installation and maintenance, etc.

Parameters of LY-Ⅱtype Pulse Bag Dust Collector
LY-Ⅱtype Pulse Bag Dust Collector
Spec. Parameter LY-II-800 LY-II-1600 LY-II-2400 LY-II-3200 LY-II-4800
Air volume (m3/h) 38400-72000 76800-144000 115200-216000 153600-288000 230400-432000
Filtering speed (m/min)     0.8-1.5
Filtering area (m2) 800 1600 2400 3200 4800
Quantity of unit 2 4 6 8 12
Filter Bag Specification Ø130-6000
Quantity of filter bag 336 672 1008 1344 2016
Quantity of pulse valve 24 48 72 96 144
Spraying pressure Kg/m2 2-2.5
Gas consumption (m2/valve) 0.2-0.25
Equipment resistance Pa 800-2000
Dust collection efficiency % ≥99.5

As a professional pulse bag dust collector manufacturer in China, we can produce not only dust removal system, but also rotary kilns, rotary dryers, separators for fertilizer manufacturing plant. Our cement equipment and fertilizer equipment are widely used in construction industry, chemical industry, fertilizer industry, etc.

We look forward to cooperating with you.
