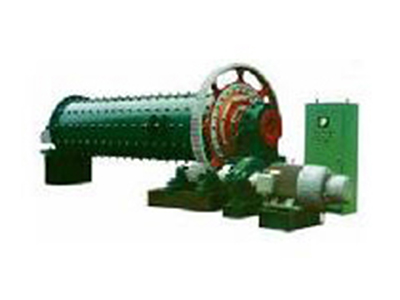

Air-swept Coal Mill
Characteristics of Air-swept Coal Mill
- Air-swept coal mill is a kind of cement equipment used to dry and grind coal. This coal grinding mill can be used in cement plants, power plants, etc.
- Our air-swept coal mill is mainly made up of feeding device, main bearing, rotation device, discharging device, lubricating system, and electric control system.
- The hot air and raw coal enter the mill through feeding device. When the air-swept coal mill operates, raw coal is raised, scattered, and dried by hot air.
- Additionally, our air-swept coal mill is designed with steel balls inside. Raw coal is crushed and ground by steel balls and the fine powder are exhausted with the hot air.
- Our air-swept coal mill has the features of compact structure, high drying efficiency, high grinding efficiency, reliable performance, etc. It is quite suitable for grinding coal.
| Type | Produ- ctivity (t/h) | Rotary speed (r/min) | Grin- ding med- ia (t) | Fee- ding Size (mm) | Inlet air temp- erature (℃) | Outlet air tempe- rature (℃) | Water content in grinding | Water content after grinding | Motor | Speed Reducer | |||
| Type | Power (kw) | Type | Speed ratio | Weight (t) | |||||||||
| Ø1.6×2.5+1 | 1.8 | 26 | 4.7 | < 25 | < 250 | < 70 | < 10% | < 1.5% | Y280M-6 | 55 | ZD40-10 | 5.6 | 18.1 |
| Ø1.7×2.5 | 3~5 | 24.5 | 7.5 | < 25 | < 250 | < 70 | < 10% | < 1.5% | JR116-6 380V | 95 | ZD40-8 | 4.5 | 19.5 |
| Ø1.8×3+1.5 | 3.2 | 25 | 7.8 | < 25 | < 250 | < 70 | < 10% | < 1.5% | JS116-6 | 95 | ZD40-10 | 5.6 | 24.4 |
| Ø2.2×3 | 5~6 | 22 | 13 | < 25 | < 250 | < 60-80 | < 10% | < 1.5% | JR136-6 380V | 180 | ZD50-9 | 5 | 31.5 |
| Ø2.2×3+1 | 5 | 21.8 | 13 | < 25 | < 350 | < 60-80 | < 10% | < 1.5% | JR400M2-8 380V | 190 | ZD50-9 | 5 | 37.8 |
| Ø2.2×4.4 | 8~9 | 22 | 19 | < 25 | < 350 | < 60-80 | < 10% | < 1.5% | JR136-6 380V | 240 | ZD60-11 | 6.4 | 36.7 |
| Ø2.4×4.5+2 | 9 | 20.4 | 20.8 | < 25 | < 350 | < 60-80 | < 10% | < 1.5% | YR450-50-8 | 280 | MCD60 | 4.5 | 71.74 |
| Ø2.4×4.75 | 14 | 20.4 | 22 | < 25 | < 350 | < 60-80 | < 10% | < 1.5% | JS1410-8 6KV | 280 | ZD60-8 | 4.5 | 47.53 |
| Ø2.4×4.75 | 14 | 20.4 | 22 | < 25 | < 350 | < 60-80 | < 10% | < 1.5% | YR500-8 10KV | 280 | ZD60-8 | 4.5 | 47.09 |
| Ø2.4×4.75 | 14 | 20.4 | 22 | < 25 | < 350 | < 60-80 | < 10% | < 1.5% | YR400-8 6KV | 280 | ZD60-8 | 4.5 | 47 |
| Ø2.5×3.9 | 10 | 20.1 | 22 | < 25 | < 350 | < 60-80 | < 10% | < 1.5% | JSQ148-8 | 310 | JP-450 | 4.5 | 54 |
| Ø2.8×5+3 | 16~17 | 18.9 | 32 | < 25 | < 350 | < 60-80 | < 10% | < 1.5% | JSQ1512-10 | 480 | MCD70 | 3.5 | 98.6 |
| Ø2.8×5+3 | 16~17 | 18.9 | 32 | < 25 | < 350 | < 60-80 | < 10% | < 1.5% | Y630-10 10KV | 500 | MCD-70 | 3.55 | 98.6 |
| Ø2.8×5.75 +2.25 | 16~18 | 18.7 | 34 | < 25 | < 350 | < 60-80 | < 10% | < 1.5% | YRKK5003-8 | 450 | MCD-70 | 4.5 | 86.9 |
| Ø2.9×3.5 | 12 | 19.21 | 26 | < 25 | < 350 | < 60-80 | < 10% | < 1.5% | JS1410-8 | 370 | JD-560 | 4.5 | 71.21 |
| Ø3×6.5+2.5 | 17~19 | 18.3 | 43 | < 25 | < 350 | < 60-80 | < 10% | < 1% | YRKK560-8 | 630 | MBY560 | 5 | 116 |
| Ø3.2×4.7 | 20 | 18.36 | 44 | < 25 | < 350 | < 60-80 | < 10% | < 1.5% | JSQ1512-8 | 700 | JD-630 | 4.5 | 112 |
| Ø3.2×5.25+2.8 | 30 | 17.46 | 60 | < 25 | < 350 | < 60-80 | < 10% | < 1.5% | JRQ1512-6 | 780 | JD-710 | 7.1 | 132.9 |
| Ø3.2×9.5 | 28 | 17 | 49.5 | < 25 | < 350 | < 60-80 | < 10% | < 1.5% | YR800-8/1180 | 800 | ZD100A-4 | 6.3 | 118.5 |
